Main principles

Secure Reliable Transport (SRT) is an open-source streaming protocol that solves some of the limitations of RTMP delivery. In contrast to RTMP/RTMPS, SRT is a UDP-based protocol that provides low-latency streaming over unpredictable networks. SRT is also required if you want to use the H265/HVEC codec. Used as:
  • Used for receiving an origin stream from your encoder, not for playback.
  • Default port: SRT 5001 (UDP).
  • Must be configured on your encoder with parameters provided in the Input Parameters and Codecs.

​
SRT PUSH

Use SRT PUSH when the encoder itself can establish an outbound connection to our Streaming Platform. This is the best choice in situations like:
  • Use software encoders like OBS, ffmpeg, etc,
  • use hardware encoders like Elemental, Haivision, etc,
  • and when you control the encoder, want the simplest workflow, and don’t want to maintain your own always-on origin server.
Your encoder settings should contain the exact ingest parameters: server URL, backup URL (if used), stream key. Read below how to get ingest links. Ingest link looks like srt://vp-push-ed1-srt.gvideo.co:5001?streamid=12345#aaabbbcccddd and contains:
  • protocol srt://
  • name of a specific server located in a specific geographic location – vp-push-ed1-srt is located in Europe
  • port :5001
  • exact stream key ?streamid=12345#aaabbbcccddd
Example: That ffmpeg command will generate a test video (1280×720 @30fps color bars) with a 2kHz sine-tone audio track, encode them to H.264 video + AAC audio, and push the stream in FLV format over RTMP to the specified ingest URL.
ffmpeg -re -f lavfi -i testsrc2=size=1280x720:rate=30 \
       -f lavfi -i sine=f=2000:r=48000 \
       -c:v libx264 -preset veryfast -b:v 1M -g 30 \
       -c:a aac -b:a 128k -ar 48000 \
       -f mpegts "srt://vp-push-ed1-srt.gvideo.co:5001?latency=1100000&streamid=12345#aaabbbcccddd"
If the stream is experiencing transcoding or playback problems, then perhaps changing the ingest server to another location will solve the problem. Read more in the Geo Distributed Ingest Points section, and contact our support to change the ingest server location.

​
Obtain the server URLs

There are two ways to obtain the SRT server URLs: via the Gcore Customer Portal or via the API.

​
Via UI

  1. In the Gcore Customer Portal, navigate to Streaming > Live Streaming.
List of live streams
  1. Click on the stream you want to push to. This will open the Live Stream Settings.
Live stream settings
  1. Ensure that the Ingest type is set to Push.
  2. Ensure that the protocol is set to SRT in the URLs for encoder section.
  3. Copy the server URL from the Push URL SRT field.
URLs for encoder section

​
Via API

You can also obtain the URL and stream key via the Gcore API. The endpoint returns the complete URLs for the default and backup ingest points, as well as the stream key. Example of the API request:
GET /streaming/streams/{stream_id}
Example of the API response:
{
  "push_url_srt": "srt://vp-push-anx2.domain.com/in/123?08cd54f0",
  "backup_push_url_srt": "srt://vp-push-ed1.domain.com/in/123b?08cd54f0",
  ...
}
Read more in the API documentation.

​
SRT PULL

Gcore Video Streaming can PULL video data from your origin. Main rules of pulling:
  • The URL of the stream to pull from must be publicly available and return data for all requests.
  • If you need to set an allowlist for access to the stream, please contact support to get an up-to-date list of networks.

​
Setting up PULL stream

There are two ways to set up a pull stream: via the Gcore Customer Portal or via the API.

​
Via UI

  1. In the Gcore Customer Portal, navigate to Streaming > Live Streaming.
List of live streams
  1. Click on the stream you want to pull from. This will open the Live Stream Settings.
Live stream settings
  1. Ensure that the Ingest type is set to Pull.
  2. In the URL field, insert a link to the stream from your media server.
  3. Click the Save changes button on the top right.
URLs for encoder section

​
Via API

You can also set up a pull stream via the Gcore API. The endpoint accepts the URL of the stream to pull from. Example of API request:
PATCH /streaming/streams/{stream_id}

{
  "stream": {
    "pull": true,
    "uri": "srt://example.com/path/to/stream",
    ...
  }
}
Read more in API documentation.

​
Primary, Backup, and Global Ingest Points

In most cases, one primary ingest point with the default ingest region is enough for streaming. For those cases where more attention is needed, Streaming Platform also offers a special feature to use backup ingest point and specify another explicit ingest region. For example, if you are streaming from Asia and latency seems too big or unstable to you. For more information, see Ingest & Backup

​
Ingest Limits

Only one ingest protocol type can be used for a live stream at a time. Pushing SRT and another protocol (e.g., RTMP) to the same stream at once will cause transcoding to fail.
Ingester timeout limit is 3 sec (3000ms). If there is no data in the connection for this period, the connection will be discarded as inactive. Your enode will need to reconnect again.

​
SRT Latency

​
Encoder frame buffer and zerolatency

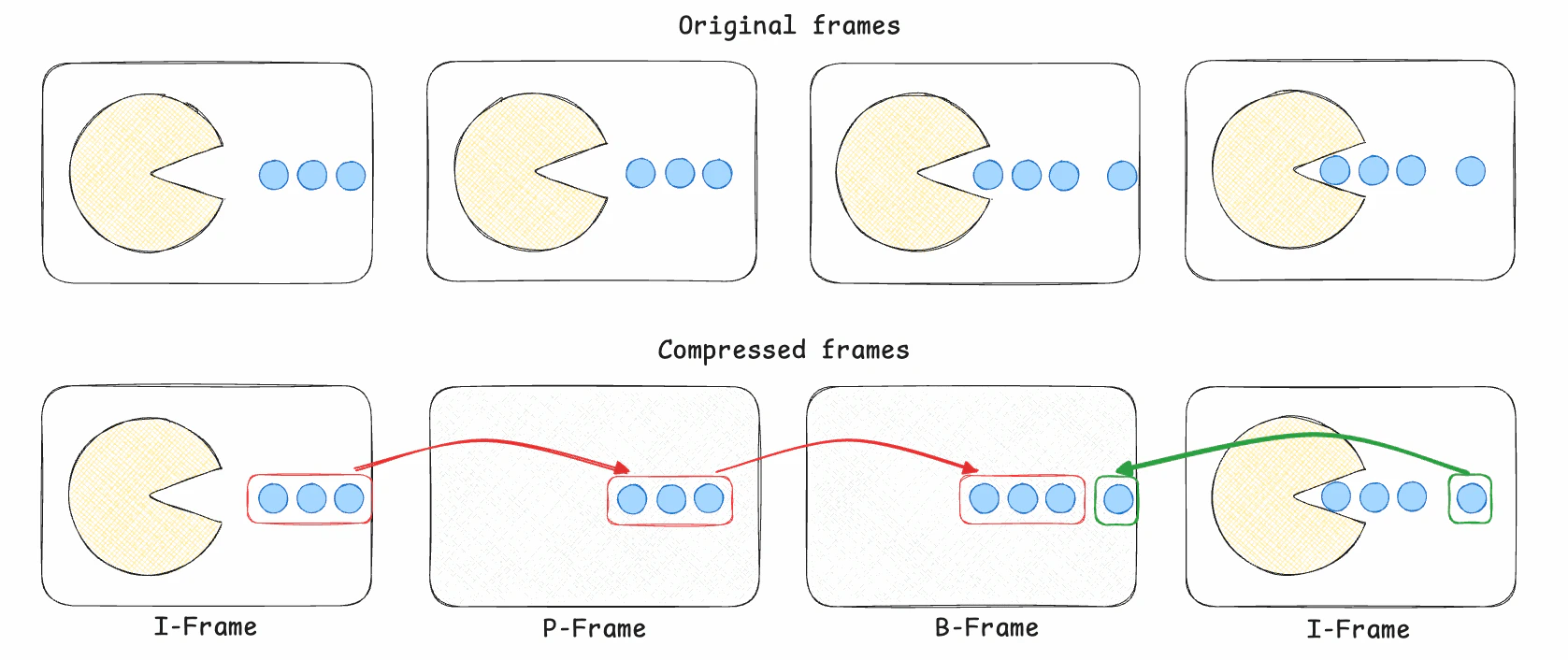

By default, both H.264 and H.265 encoders optimize compression efficiency using techniques such as B-frames, lookahead (rc-lookahead), scenecut analysis, and related predictive tools. These features require the encoder to pre-buffer and reorder frames internally, resulting in delayed output and non-monotonic DTS/PTS patterns. While SRT will transport whatever MPEG-TS packets it receives, the receiver and transcoder are sensitive to packets that arrive too late relative to SRT’s configured latency window. If frames emerge from the encoder with significant internal delay, the receiver may classify them as “late” and discard them, causing GOP breaks and unstable ingest. This is why SRT ingest almost always requires the use of -tune zerolatency (or equivalent encoder parameters) for live scenarios. Example scenario: Without zerolatency tuning, typical H.264/H.265 defaults include:

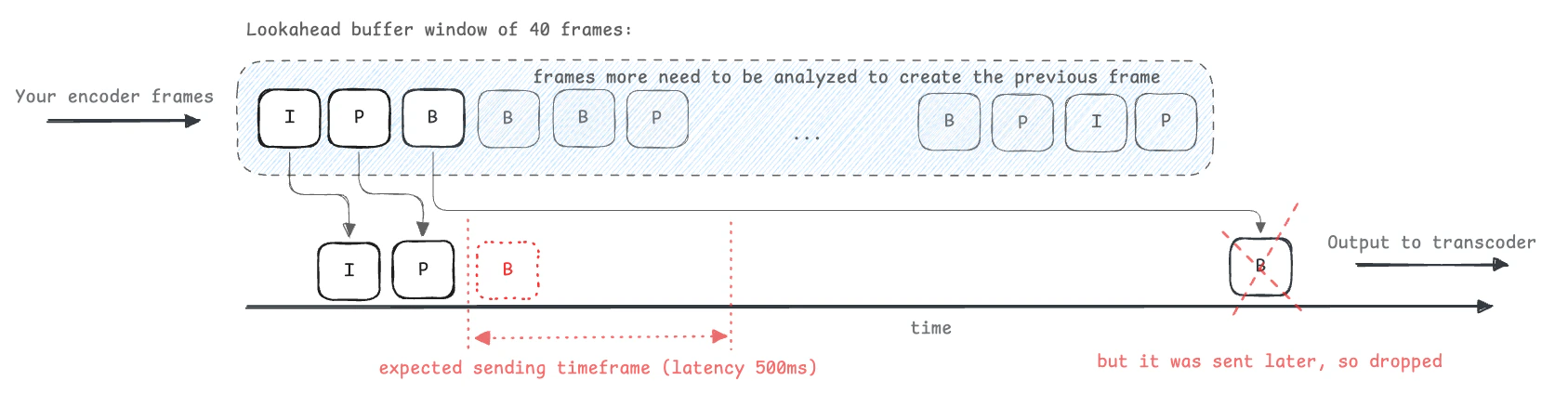

  • rc-lookahead: Caches a future window of ~40 frames before deciding frame type and quantanization parameters. At 30 fps, this alone introduces roughly 1.3 seconds of encoder-side latency.
  • scenecut: Enables lookahead-based scene detection, further increasing buffering and reordering.
  • bframes: Uses B-frames, which inherently require reordering and delay in emission.
Together, these behaviors can add 1.3–1.5 seconds of encoder latency before the first encoded frame is even delivered to the SRT output. When combined with TS muxing delay, uplink jitter, and RTT, the effective end-to-end emission time may reach 1.7–2.0 seconds. If the SRT sender uses a small default latency window (commonly 100–500 ms on certain encoders by default), packets emerging from the encoder will exceed SRT’s delivery deadline. Anything arriving outside the latency budget is treated as “late” and dropped, making the stream inherently non-functional regardless of network conditions.
In other words: if your encoder introduces 1.5 seconds of delay but your SRT latency is 0.5 seconds, you are generating a stream that cannot possibly be delivered reliably—SRT will discard the majority of packets as late.Thus, your encoder is creating a deliberately unworkable stream.

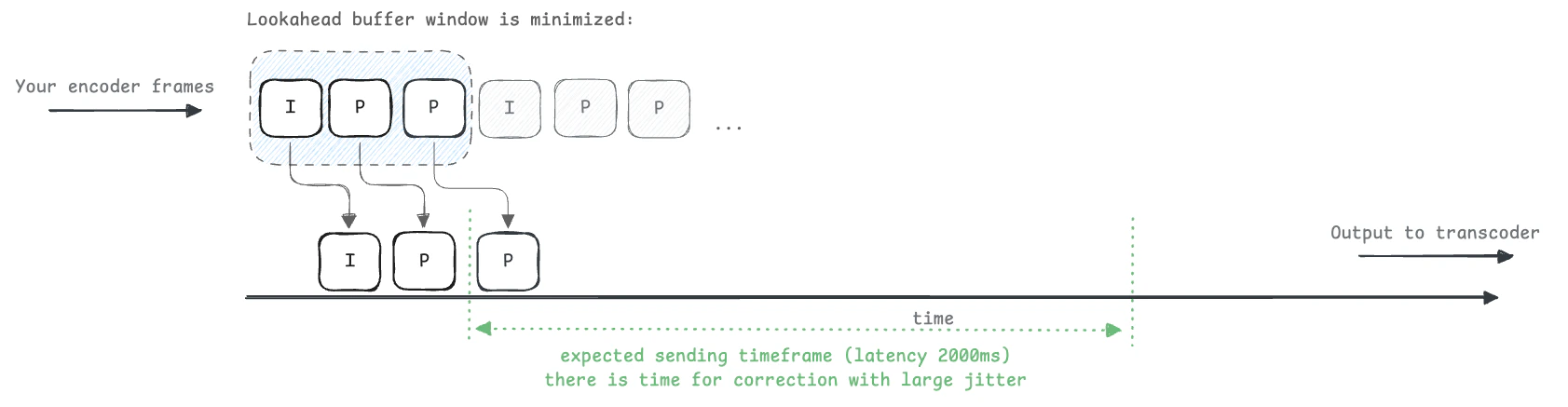

Recommendation: Always enable -tune zerolatency (or explicitly disable lookahead, B-frames, and reordering parameters) when sending video over SRT. This ensures the encoder outputs frames immediately and keeps all timestamps within SRT’s latency window, enabling stable, predictable ingest.

​
Public Internet latency

SRT is a latency transport protocol by design, but real-world networks are not always stable and the path from a venue to our ingest point may traverse long and unpredictable routes.
Incorrect or low default value is one of the most common reasons for packet loss, frames loss, and bad picture.
We therefore recommend setting latency manually rather than relying on the default, to ensure the buffer is correctly sized for your environment. A practical range is 1000–2000 ms, with the exact value chosen based on RTT, jitter, and expected packet loss. Increasing SRT 2000ms latency provides a larger error absorption window, stabilizing the stream and keeping delay predictable.

​
Best Practices for Configuring SRT Latency

Recommended latency ranges for SRT ingest based on network conditions and “zerolatency” tuning of your encoder.
Network ConditionsTypical RTT (ms)Jitter/LossRecommended Latency (ms)
Same datacenter<20Very low150–400
Same country, stable uplink20–100Low (<0.5% loss)600–1000
Cross-region, higher variability100–300Moderate (<1%)1000–2000
Other unstable (mobile) internet>300High (>1% bursts)2000-2500
Do not set latency in SRT encoder close to or more than 3000ms. See about limits above. Your SRT encoder will collect and fill the buffer for 3 seconds before sending the data, but this will already be considered an inactive connection. Practical setup notes:
  • Use -tune zerolatency option in your encoder.
  • Default values are often too low (e.g., 120-500 ms) for WAN paths, which can cause instability for Internet delivery.
  • Monitoring: Check SRT statistics for retransmissions, buffer usage, and packet drops. If drops occur, increase latency according to the table above.
  • Read your encoder docs carefully to see what the latency attribute is and what units it uses: s, ms, µs. In most cases, it will be ms (milliseconds), but ffmpeg requiress a value in µs (microseconds) – ffmpeg.
Enable SRT-stats on your sender-side and watch these fields:
  • RTT and jitter: round-trip time, variability. Drives latency sizing.
  • Loss and retransmissions: pkt*Loss, pkt*Retrans, pkt*Drop. Rising values → increase latency or reduce bitrate.
  • Throughput/bandwidth: current/peak send rate.
  • Buffer occupancy: send/receive buffer fill vs negotiated latency; approaching 0 under loss means too low latency.
  • Flight/window size, MSS/packet size: detects fragmentation or congestion. Also check official SRT statistics documentation – github
An example of a good send with a 2000 ms window and zero packet loss over a long period of time:
{
    "bytes": 137032683360,
    "bytesDropped": 0,
    "bytesLost": 0,
    "mbitRate": 10.68,
    "packets": 100759326,
    "packetsBelated": 0,
    "packetsDropped": 0,
    "packetsFilterExtra": 0,
    "packetsFilterLoss": 0,
    "packetsFilterSupply": 0,
    "packetsLost": 0,
    "packetsRetransmitted": 0
}

​
SRT Troubleshooting

There are 2 main cases:
  1. Picture is falling apart. If the picture breakes into squares or just gray.
  2. Stream is frozen or buffered. If frames are dropped or player shows buffering.
Both cases mean packet loss in the network from your encoder to our ingester. Reduce the bitrate of the master stream and set SRT latency and zerolatency tuning explicitly.

​
How to send SRT

​
FFmpeg SRT

This FFmpeg command generates a live 1080p/30fps test video and sine-wave audio, encodes and packs into MPEG-TS stream. Stream is sent via SRT in caller mode with a 2-second latency window.
ffmpeg -re \
 -f lavfi -i "testsrc=size=1920x1080:rate=30" \
 -f lavfi -i "sine=frequency=1000:sample_rate=48000" \
 -c:v libx264 -preset veryfast -tune zerolatency -x264-params "rc-lookahead=0" \
 -g 30 -keyint_min 30 -pix_fmt yuv420p -b:v 3000k \
 -c:a aac -b:a 128k \
 -f mpegts \
 "srt://vp-push-ed2-srt.gvideo.co:5001?mode=caller&latency=2000000&streamid=123#abc719"
FFmpeg key points:
  • -tune zerolatency – to disable lookahead and frames reordering
  • -g 30 -keyint_min 30 – to keeps GOP strictly predictable
  • -pix_fmt yuv420p – to force common pixel format 8-bit YUV 4:2:0
  • ?mode=caller – PUSH mode from FFmpeg to ingest
    • &latency=2000000 – 2 sec SRT buffering (µs, microseconds in ffmpeg)
    • &streamid=id#key – stream id is taken from UI or API, contains id and key divided by ”#”
Read more information about ffmpeg usage on page FFmpeg

​
GStreamer SRT

This GStreamer pipeline generates a live 1080p/30fps test video with sine-wave audio, encodes and packs into MPEG-TS stream. Stream is sent via SRT in caller mode with a 2-second latency window.
gst-launch-1.0 -v \
    videotestsrc is-live=true pattern=smpte ! \
        video/x-raw,format=I420,width=1920,height=1080,framerate=30/1 ! \
        x264enc tune=zerolatency bitrate=3000 speed-preset=veryfast key-int-max=30 bframes=0 ! \
        h264parse config-interval=1 ! queue ! mux. \
    audiotestsrc is-live=true wave=sine ! \
        audio/x-raw,channels=2,rate=48000 ! \
        avenc_aac bitrate=128000 ! queue ! mux. \
    mpegtsmux name=mux ! \
    srtsink uri="srt://vp-push-ed2-srt.gvideo.co:5001" \
            mode=caller latency=2000 \
            streamid="123#abc719"
Read more information about Gstreamer usage on page Gstreamer

​
OBS SRT

  1. In Settings/Stream, choose Custom and enter the full SRT URL in Server:
srt://vp-push-ed2-srt.gvideo.co:5001?mode=caller&latency=2000000&streamid=123#abc719
  1. Use x264 with low-latency settings to prevent encoder buffering that can exceed SRT’s latency window.
  2. Recommended H.264 parameters must be set via Advanced Encoder Options in OBS:
  • Keyframe interval: 1s
  • CPU Usage Preset: preset veryfast
  • Profile: baseline
  • Tune: zerolatency
  • x264 Options: rc-lookahead=0
Read more information about OBS on page OBS

​
vMix SRT

  1. Open Settings Outputs/NDI/SRT/SRT and create an Output with:
  • Destination: srt://HOST:PORT
  • Mode: Caller
  • Latency: 2000 ms (or appropriate value)
  • Stream ID: set if your ingest server requires it (123#abc719 format).
  1. Enable Low Latency / No B-frames in vMix by applying equivalent x264 settings:
  • Encoder Preset: veryfast
  • Tune: zero latency
  • Custom x264 Params: rc-lookahead=0
